BT PFH350 Center Height 65mm Punch Former For CNC Grinding Machine

Dongguan Baitong Precision Mould Manuafacturing Co.,Ltd
Contact Now

BT PFH350 Center Height 65mm Punch Former For CNC Grinding Machine

  • 1
  • 2

Brand Name : BAITO

Model Number : BT-PFH350

Place of Origin : China

MOQ : 1

Price : $100-400

Payment Terms : T/T

Supply Ability : 3000pcs per month

Delivery Time : 5-6workdays/ stock

Packaging Details : plastic bag, Outpacking:wooden box or upon request.

Certification : ISO9001

Product Name : Punch former

Material : steel

Customization : logo, package

Brand name : BAITO

Product modes : BT- PFH350

apply : plastic injection mold

Contact Now

Tooling Fixture CNC Grinding machine high precision unidirectional BT- PFH350 punch former

Product Description

Specification

Center height

65mm

Clamping diameter in V-slot

Dia. 3-38mm

Travel of V-Block

30mm

Indexer tooth q’ty& accuracy

24/15°-/+ 5°

Through hole diameter

Dia.36mm

Clamping accuracy (50mm)

0.005mm

Application:

BT PFH350 Center Height 65mm Punch Former For CNC Grinding Machine
BT PFH350 Center Height 65mm Punch Former For CNC Grinding Machine

Features:

1) Adopting Arc attachment for dressing wheels in various shapes.

2) The V-shaped design pressure plaste can firmly and accurately fix the workpiece and has the function of the fine adjustment up and down, it is very easy to correct the center.

3) High-precision dual-group bearing spindle design is used to achieve high precision and stability, and has a traditional life of more than serveral times

4) With positioning groove, it can quickly and accurately position the multilateral punch

5) Stainless steel material, durable and easy to maintain.

Company Files

Dongguan Baitong Precision Mold Manufacturing Co., Ltd. was founded in Huangjiang Town, Dongguan City in 1998. It is a professional, research and development, production and sales company that supplies mold parts, mold special parts, automatic fixtures, machine tool parts, etc. After 20 years of development, all colleagues of Baitong Precision work together and remain true to original aspiration, establish industry standards, and build a one-stop procurement platform for global mold parts. Through the rapid development of the world and China's molds, based on the innovative and pragmatic business philosophy, in the spirit of integrity, responsibility, respect, enthusiasm, and fighting, Baitong Precision is committed to becoming an outstanding mold supplier. Taking the long-term needs of customers as the strategic development of the company, with customers as the center of innovation driven, higher, faster, better to create value for customers, create wealth for employees, and contribute to society.

BT PFH350 Center Height 65mm Punch Former For CNC Grinding Machine

BT PFH350 Center Height 65mm Punch Former For CNC Grinding Machine

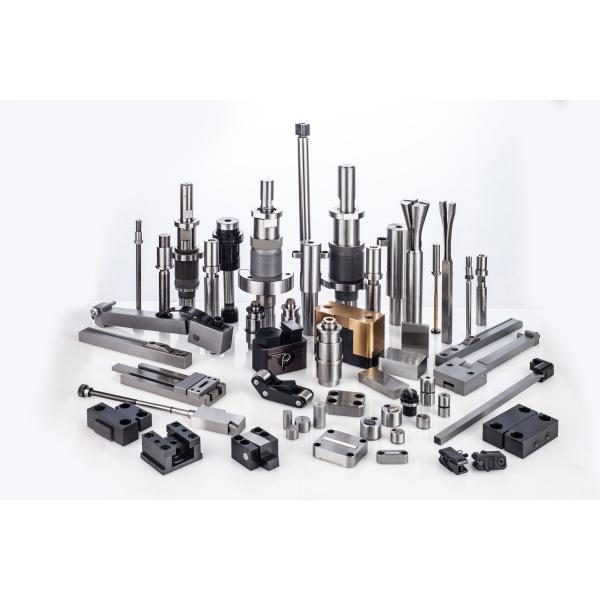

Product lines:

Complete product line can supplier you with one-stop shopping serves.

BT PFH350 Center Height 65mm Punch Former For CNC Grinding Machine

BT PFH350 Center Height 65mm Punch Former For CNC Grinding Machine

FAQ

1. Can I have prices of your products?
Yes. Please feel free to send us the inquiry here. You will get our reply in 24 hours.
2. Can we print our logo/website/company name on products?
Yes. Please advise the information of the logo.
3. What's the lead time for regular order?
We have stocks about many standard mold components, about 3-8 workdays for regular order.
4. Can I ask some technical questions?
Yes. We have a strong engineering team.
5. Do you inspect the finished products?

Yes. Each step of production and finished products will be came out inspection by QC department

before shipping.
